Products - Circulation Pump GPD25-10SFC 115V/60Hz With Check Valve

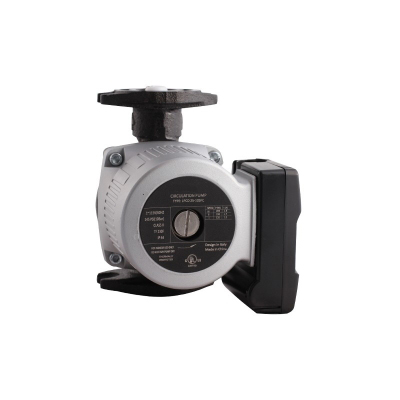

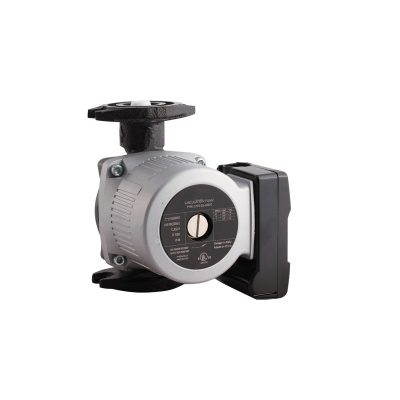

Circulation Pump GPD25-10SFC 115V/60Hz With Check Valve



Applications
Circulation Pumps are the answer to waiting (and waiting and waiting) for the hot water to arrive where you need it, and can also provide energy efficient heating for your home. These excellent quality pumps are economical, easy to install, low-maintenance and they save valuable resources, too!
Category:
  • Description

Description

Model:  GPD25-10SFC With Check Valve
Pump Body Length:6 1/2 Feet
Power: 200/190/135W
Max.flow: 32 GPM
Max head: 30 Feet
Current: 1.8/1.7/1.2A
Voltage/ Frequency: 115/230V 50/60HZ
Pump housing: Cast iron
Pumped liquid: Water
Insulation class: H
Degree of Protection: IP44
Liquid temperature range: 2-110℃
Max System Pressure: 1.0MPA

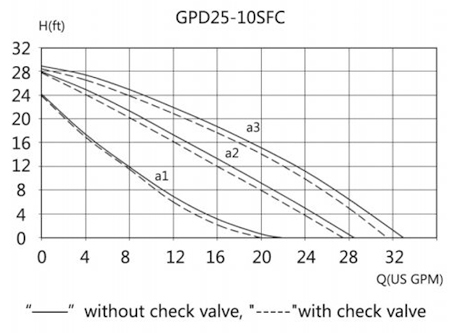

Performance Curve
