Water Heater Expansion Tank
- Applications
-
- The Potable Water Expansion Tanks are designed to absorb the increased volume of water created by thermal expansion and to maintain balanced pressure throughout the potable water supply system. The tanks feature a pre-pressurized steel tank with an expansion membrane that prevents contact of the water with the air in the tank. This prevents loss of air to the water and ensures long and trouble-free life for the system. These tanks may be used with all types of Direct Fired Hot Water Heaters (gas, oil or electric) and hot water storage tanks.
- Product Overview
Capacity in gallons:
2 gallons
4.5 gallons

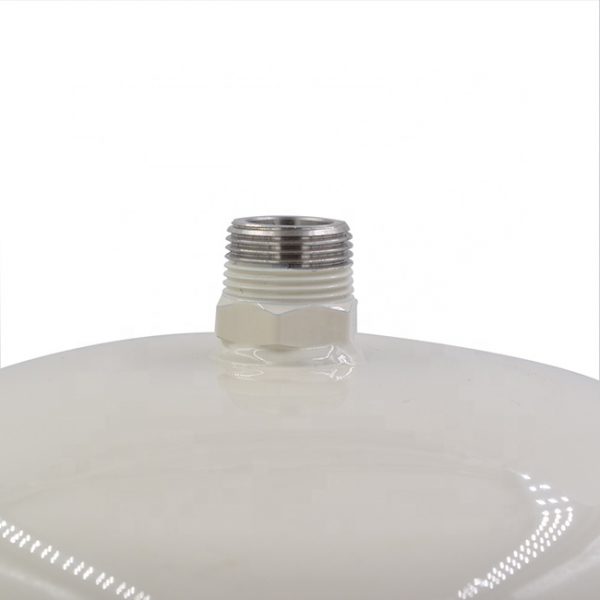

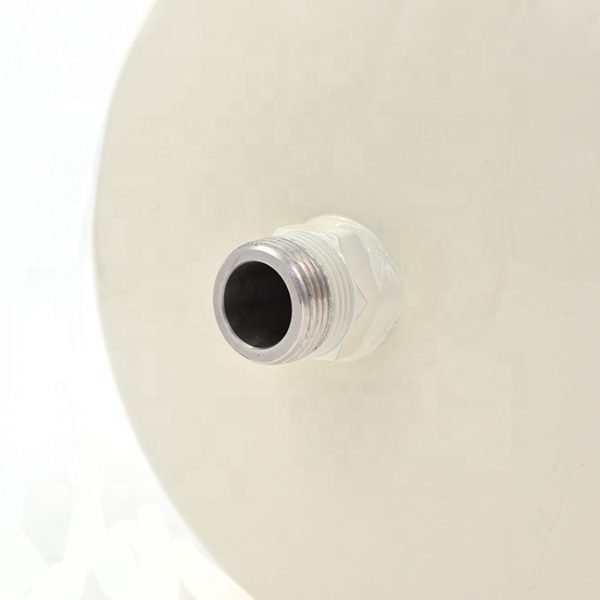

- Stainless steel 3/4 in. MIP with hex
- Factory pre-charged at 25 psi
- IAPMO listed, cUPC certified and ANSI/NSF 61 compliant
- High quality coating prevents corrosion
- 16-Gauge cold rolled steel shell
- Brass air charging port with O-ring seal
- Maximum pressure of 150 psi
- Maximum temperature rating of 200°F
- Provides a reservoir for expanded water volume
- Protects water heater, fixtures and appliances
