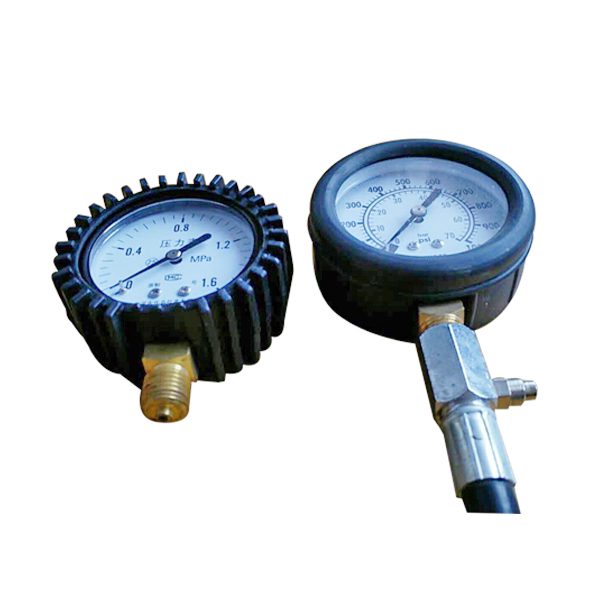

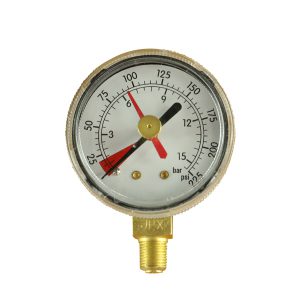

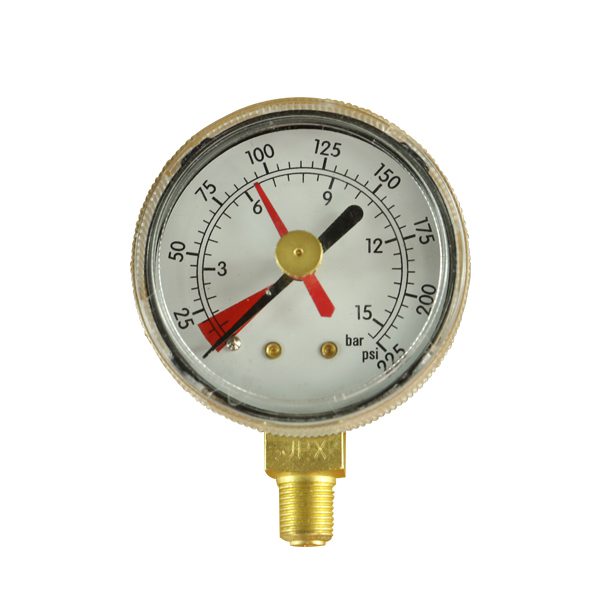

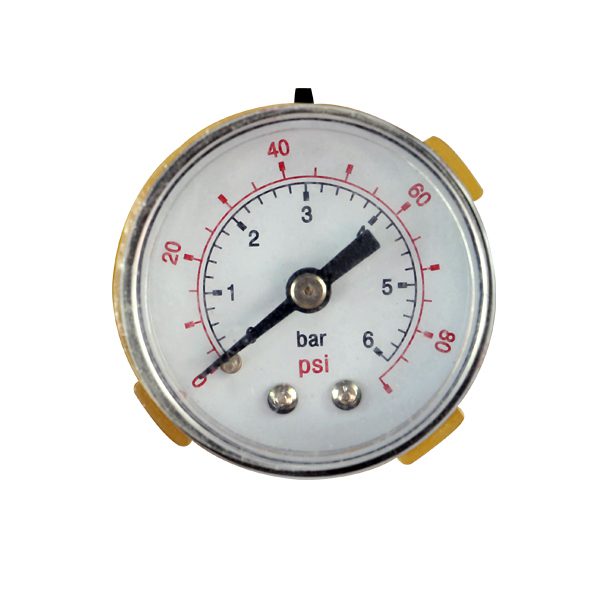

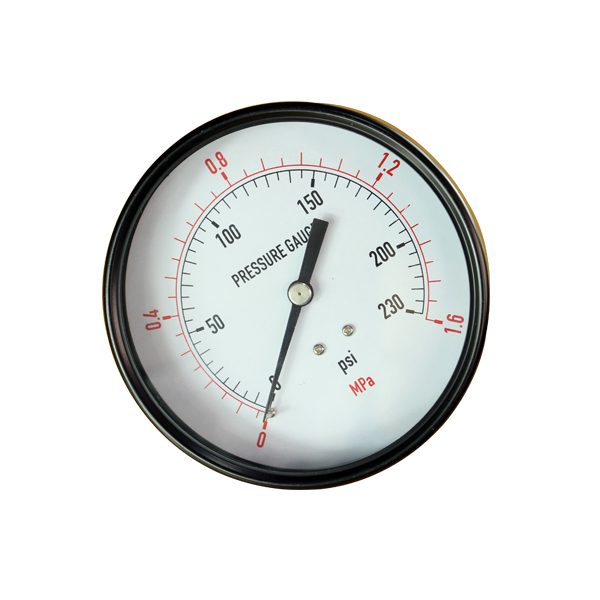

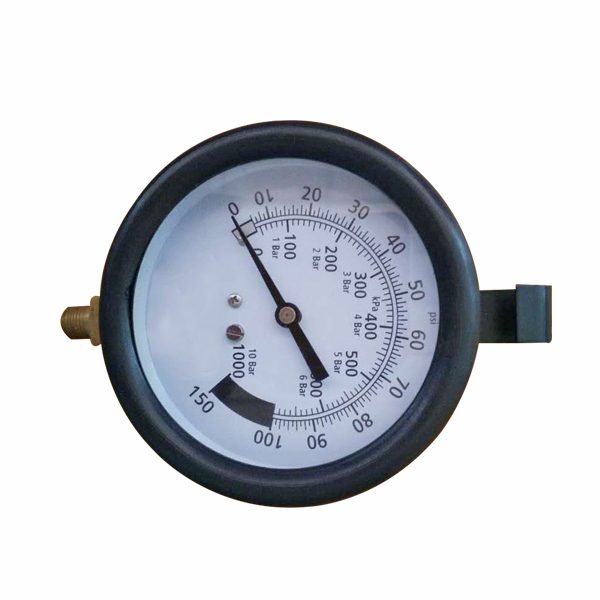

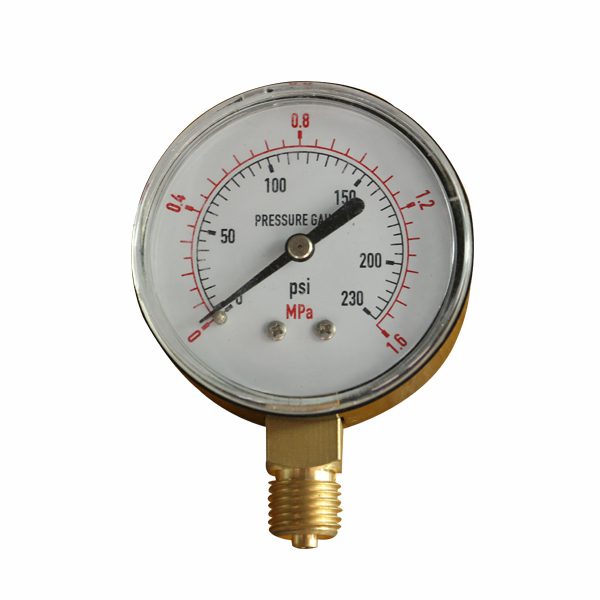

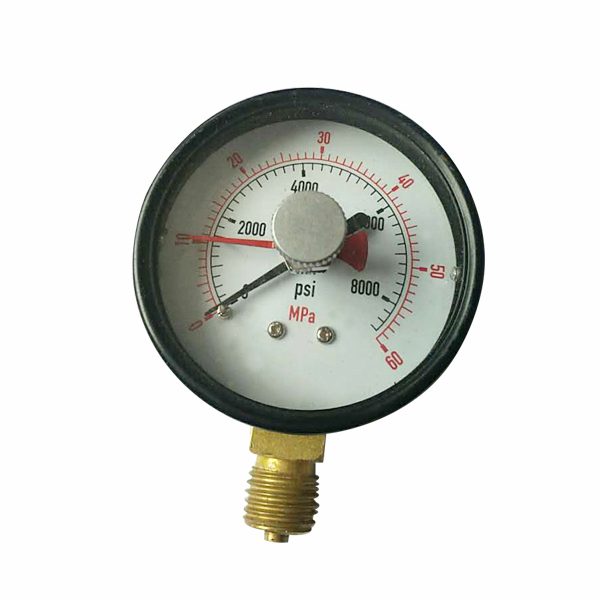

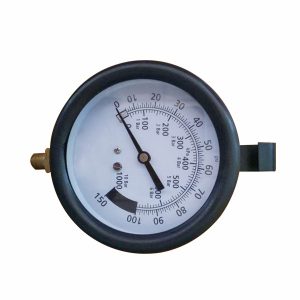

General Pressure Gauge
- Descriptions:
- Low-cost, commercial grade, mainstream, multi use pressure gauge.
- Applications:
-
- General purpose gauge for plumbing, heating, air conditioning, pneumatic, hydraulic, water tanks and air compressors
- Suitable for non-clogging and non-corroding media
- Technical Parameter
| Name | Pressure gauge |
| Diameter | 1.5”, 2.0”, 2.5”, 3”, 4”, 6” |
| Dials Size |
1.5"(40mm), 2"(50mm), 2.5“(63mm), etc. |
| Scale | psi, bar, Mpa, kg/cm2, kpa, etc. |
| Ring | Non, black steel or chrome plated |
| Movement | Brass |
| Bourdon tube | Brass |
| Connector material | Brass or aluminum |
| Window | Plastic or Glass |
| Connection sizes | 1/8 for 1.5" (40mm)case; 1/4 for 2"(50mm) or 2.5"(63mm) case. |
| Connection threads | Metric Thread, NPT, BSP (G, PF), BSPT (ZG, PT) |
| Mounting | Axial connector, radial connector |
| Case Material | Plastic, black steel, plated steel and stainless steel |
| Oil-filled Gauge: | Glycerin or Silicon |
| Precision | 2.5 |
| 2.0 | |
| Pressure limitation | Steady: 3/4x full scale value |
| Fluctuation:2/3x full scale value | |
| Short time: full scale value |
