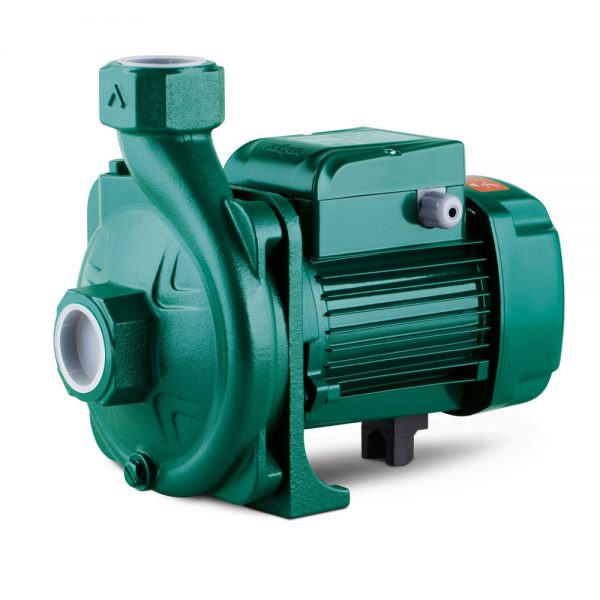

CM Centrifugal Pump
- Applications
- Household water supply
Water supply system
Cooling system
Boost system
- Working Range
- Liquid: clean liquids without
suspended solids,non-aggressive
Liquid temperature: -10 °C and +60 °C
Ambient temperature up to +40 °C
Max. working pressure 10 bar
Continuous service S1
Insulation: B
Protection: IP 44
- Description
Description
Performance Data（n=2850 r/min)
| Model | Power | Flow max | Head max | Inlet/outlet | Suc. Max | RPM | Optimal working point |
|
| 40CM125 | 1HP | 0.75kW | 260 L/min | 20m | 1.5″×1.5″ | 8m | 2850r/min | 200L/10m |
