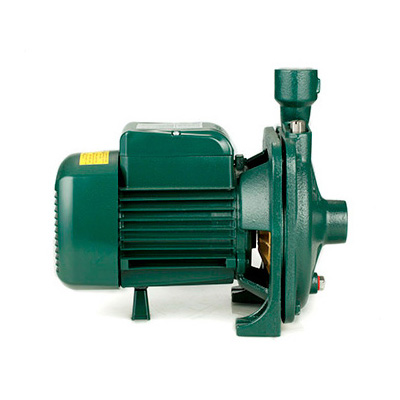

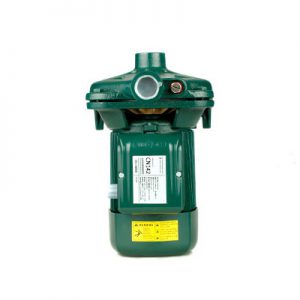

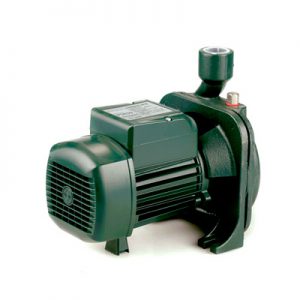

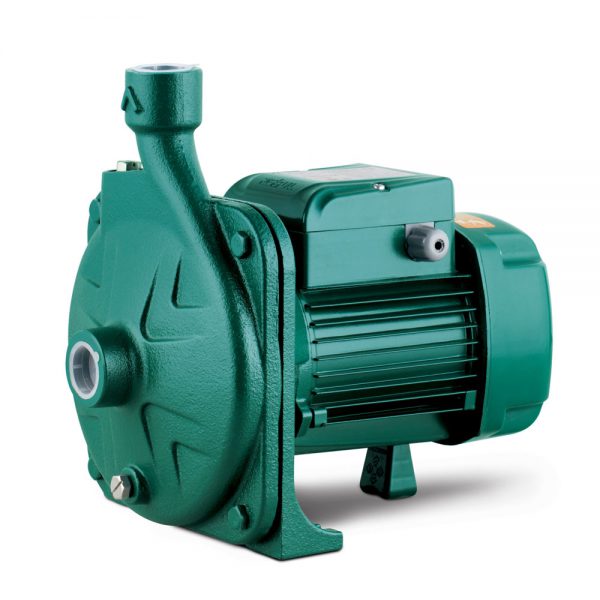

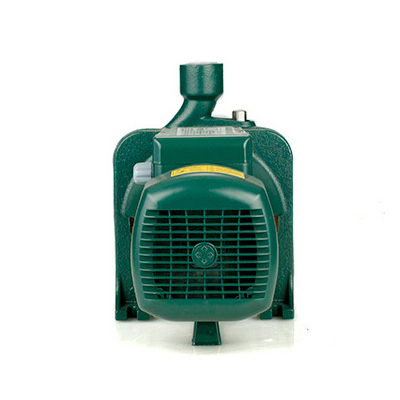

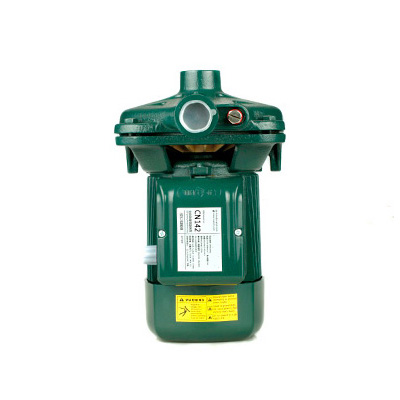

CN Series Centrifugal Pump
- Applications
- Household water supply
Water supply system
Cooling system
Boost system
- Working Range
- Liquid: clean liquids without
suspended solids,non-aggressive
Liquid temperature: -10 °C and +60 °C
Ambient temperature up to +40 °C
Max. working pressure 10 bar
Continuous service S1
Insulation: B
Protection: IP 44
- Description
Description
Performance Date（n=2850 r/min)
| Model | Power | Power | Flow max | Head max | Inlet/outlet | Suc. Max | RPM | Optimal working point |
|
| CN130 | 0.5HP | 0.37kW | 2.5A | 85L/min | 20m | G1″×G1″ | 8m | 2850r/min | 75L/15m |
| CN142 | 0.65HP | 0.50kW | 3.6A | 90L/min | 25m | G1″×G1″ | 8m | 2850r/min | 80L/20m |
| CN142X | 0.75HP | 0.55kW | 3.8A | 95L/min | 27m | G1″×G1″ | 8m | 2850r/min | 85L/20m |
| CN155 | 0.9HP | 0.70kW | 5.0A | 100L/min | 32m | G1″×G1″ | 8m | 2850r/min | 90L/25m |
| CN155X | 1HP | 0.75kW | 5.2A | 105L/min | 34m | G1″×G1″ | 8m | 2850r/min | 95L/25m |
